High-performance rubber belt vulcanizing machines designed for conveyor belt splicing, repair, and vulcanization applications.

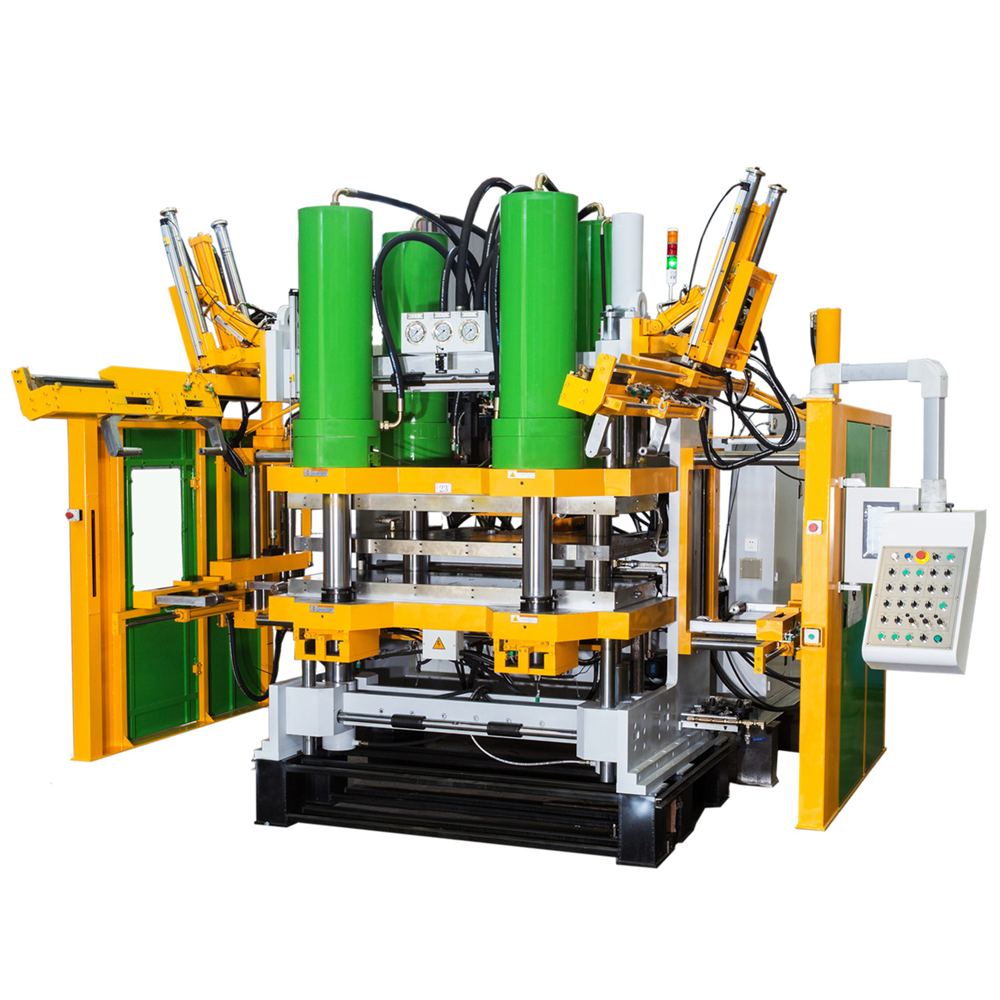

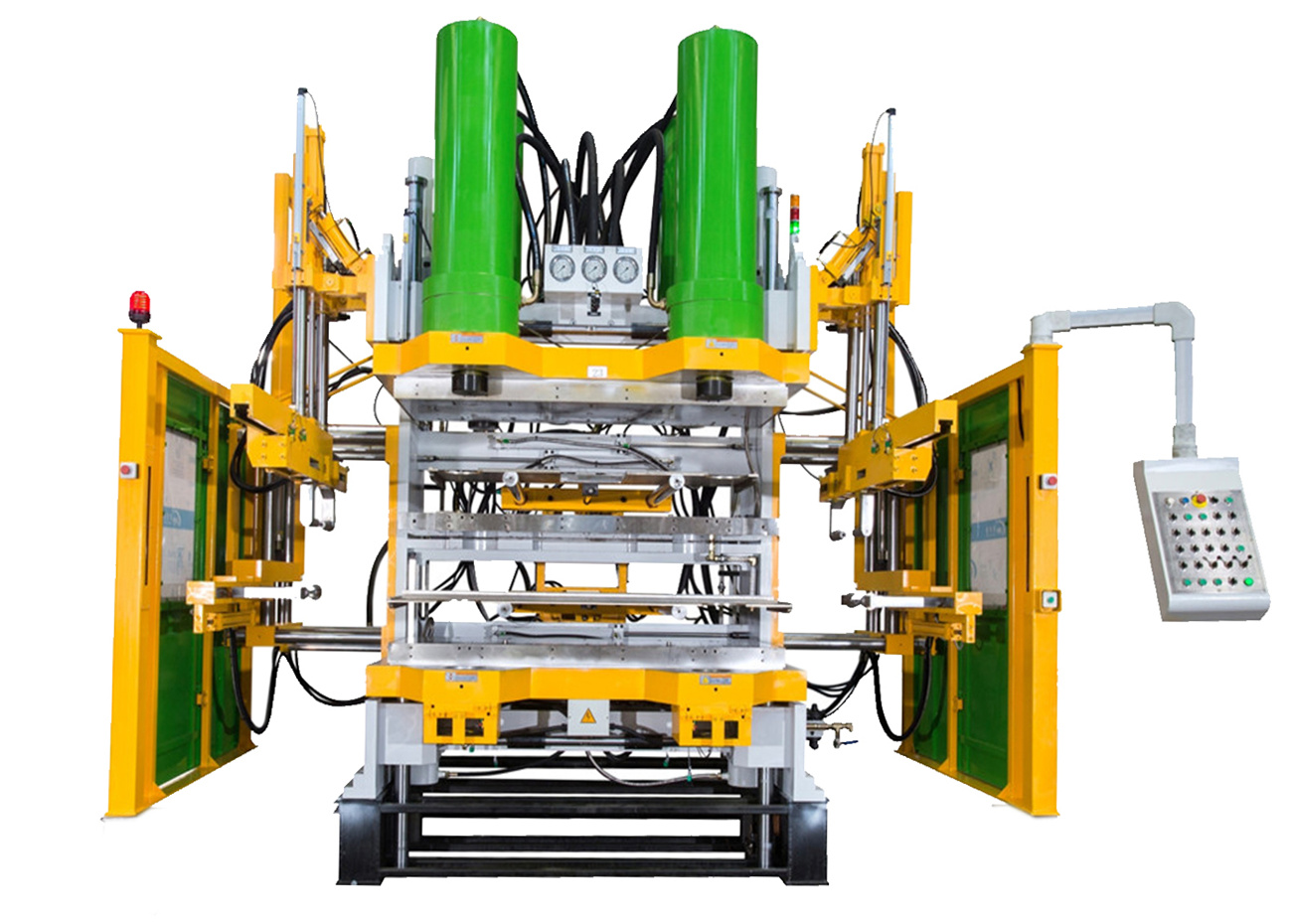

Rubber Belt Track Vulcanizing Press is HWAYI’s hot-selling automatic belt vulcanizing press. The total automatic production line includes an iron core winding machine, rubber tracks preforming machine, rubber tracks vulcanizing press, and automatic trail car. Compared with the manual rubber belt vulcanizing machine, the automatic type has the following features below.
Automatically load rubber material; Automatically tense steel belt; Track taking off semi-automatically
Special telescopic design applied on the fast clamping device efficiently decreases operation height, making the belt vulcanizing machine easier to install and operate in various production environments.
The hydraulic pump automatically adjusts energy consumption during the curing process to minimize energy loss while ensuring stable clamping force throughout the belt vulcanizing press operation.
The hydraulic pump flow can be precisely adjusted from 0% to 100% during multiple operating actions, providing accurate process control for the belt vulcanizer machine.
The optimized performance between the clamping unit and tensing device improves belt track service life by up to 50%, enhancing the long-term reliability of the rubber belt vulcanizing machine.
Equipped with an advanced B&R control system, the rubber belt vulcanizing machine features automatic data adjustment and storage functions. Production data can be monitored and tracked in real time to analyze process stability and continuously improve product quality.
Professional rubber belt vulcanizing machine solutions for hot splicing of rubber conveyor belts, ensuring strong, reliable, and long-lasting joints.
Efficient repair of damaged or worn conveyor belts using a reliable belt vulcanizing press, minimizing downtime and maintenance costs.
Widely used with belt vulcanizer machines for heavy-duty conveyor belt maintenance in mining and quarry operations.
Ideal belt vulcanizing machine solutions for conveyor systems requiring continuous operation and dependable belt splicing performance.
Supports conveyor belt installation and maintenance using portable belt vulcanizer equipment in terminals, ports, and logistics centers.
Ensures durable belt splices under high-load industrial conveying conditions with advanced rubber belt vulcanizing machine technology.
Rubber Belt Vulcanizing Machine Series Main Technical Parameters
Parameter | HYL-100P | HYL-200P | HYL-300P | HYL-480P | HYL-650P | HYL-900P |
Clamping Force (KN) | 1000 | 2800 | 3000 | 4800 | 6500 | 9000 |
Top Platen L×W (mm) | 950×600 | 1550×650 | 1700×800 | 1700×800 | 1920×1050 | 2250×1050 |
Mobile Part L×W (mm) | 950×600 | 1550×650 | 1500×800 | 1700×800 | 1920×1050 | 2250×1050 |
Space of Platen (mm) | 540 | 550 | 500 | 550 | 900 | 700 |
Mold Close Stroke (mm) | 400 | 400 | 400 | 400 | 720 | 550 |
Min. Mold Thickness (mm) | 100 | 150 | 150 | 150 | 180 | 150 |
Max. Width of Track (mm) | 400 | 450 | 500 | 550 | 800 | 457–914 |
Range of Track (mm) | 2500–3500 | 3700–4600 | 4600–6200 | 4800–6400 | 5900–8500 | 8900–9600 |
System Pressure (MPa) | 21 | 21 | 21 | 21 | 21 | 21 |
